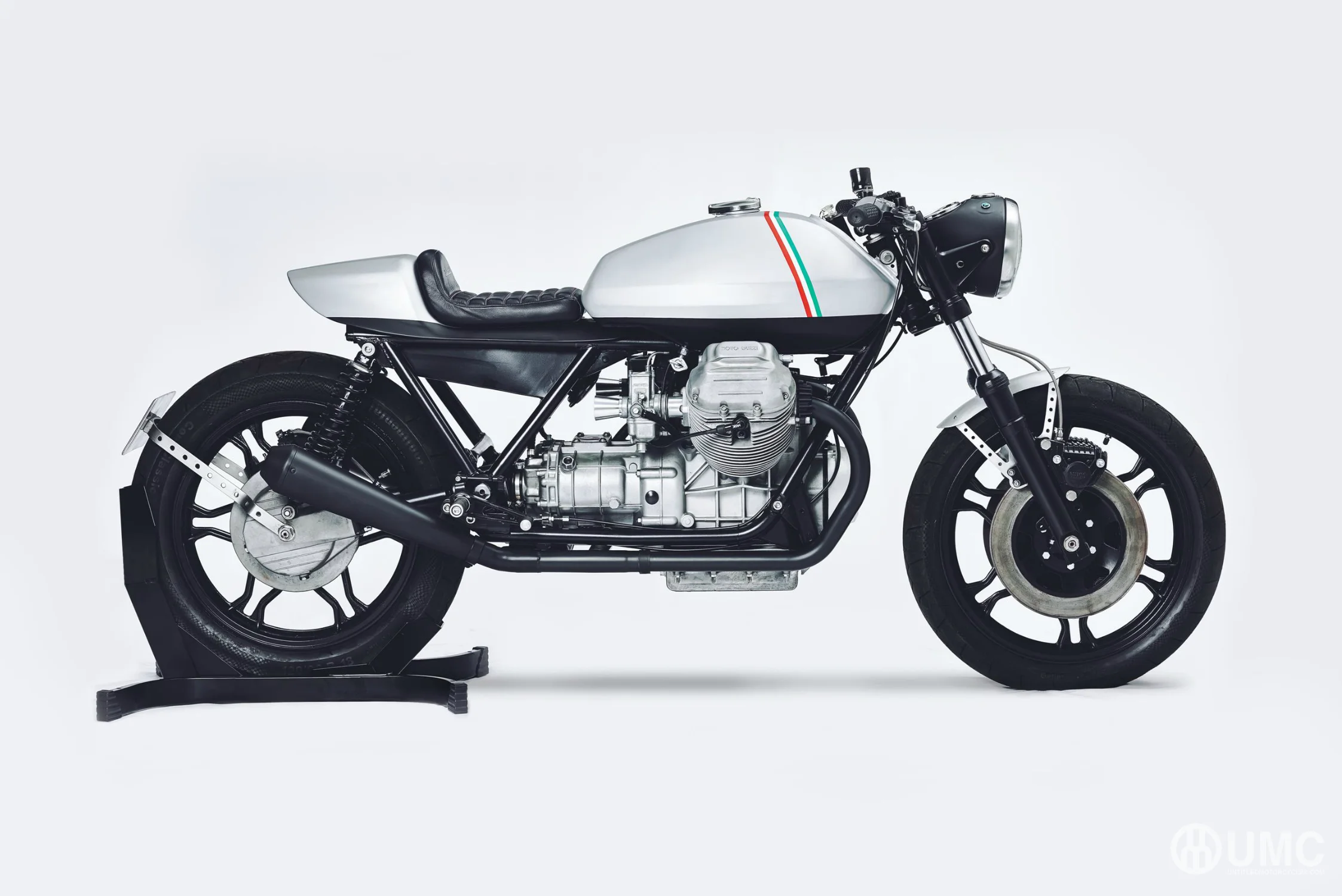

UMC-037 VIVO
Donor bike
1981 Moto Guzzi 850 T3 Carabinieri
SPECIFICATIONS
Length: 1470 mm
Seat: 775 mm
Weight: 198 kg
Fuel: 22.5 L
Bodywork
• Stock tank with Italian pin strip over brushed alloy style paint
• Custom seat unit , upholstered in black leather with tricolour stitching
• Alloy front mudguard with custom bracket fabricated in house
• Rear number plate bracket fabricated in house
Frame and suspension
• Moto Guzzi Tonti frame - de-tabbed, subframe chopped just behind the shock mounts. Powder coated satin black
• Stock wheels powder coated satin black
• Tyres conti classic attack
• Hagon shocks
Drivetrain
• 850cc Moto Guzzi
• Engine stripped and bead blasted
• New big end shells
• New timing chain and tensioners
• New piston rings
• New valve guides
• New valves
• New stainless steel pushrod tubes
• New clutch friction plates
• All new gaskets
• Gearbox rebuilt
•Dell’Ortos carbs rebuilt with custom inline manifolds
• Stubby bellmouths
• Custom exhaust header with revise megatons ceramic coated
Controls
• Flat Vincent bars powder coated satin black
• POSH switches wired through the bars
• Kawasaki clutch and brake levers
• Front brake master Kawasaki style
• Rear brake master cylinder moved to inside frame
Electrics
• Battery and electric box fabricated to sit under the seat unit
• Classic British headlight with smiths electronic speedo
• LED rear indicators in frame rail
• Front indicators motogadget m-blaze
