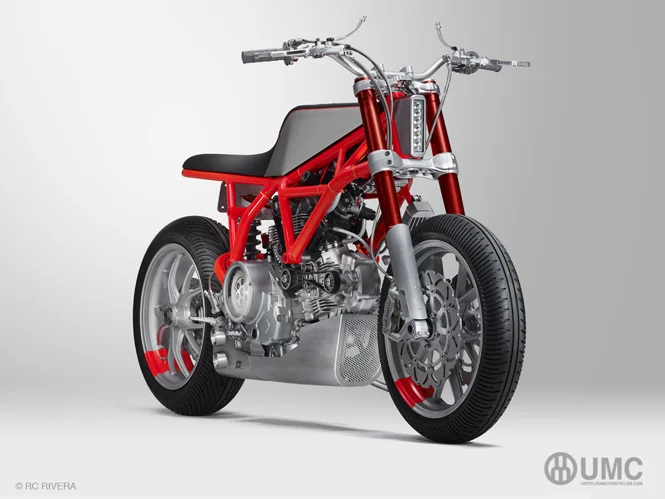

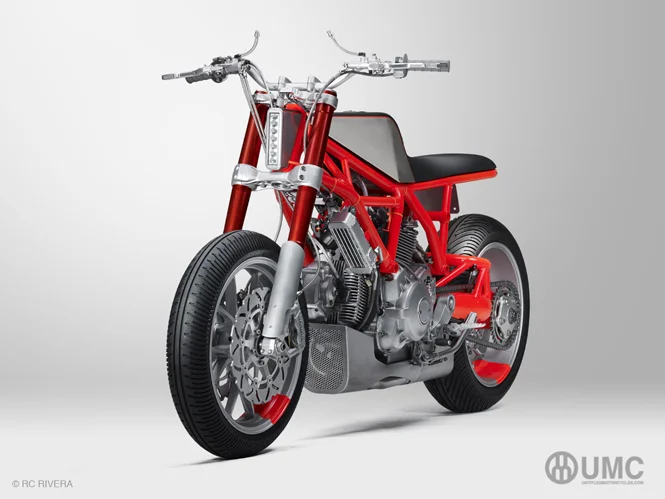

UMC-038 Hyper Scrambler

An extreme 800cc motorcycle, lighter than a Vespa

THE BUILD

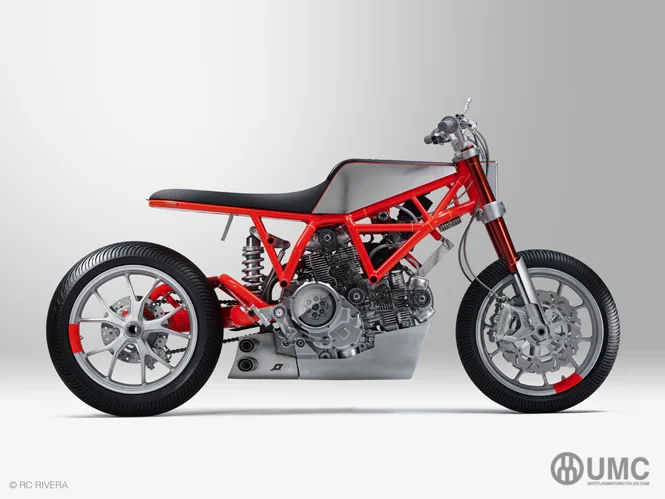

UMC-038 was designed to expose and celebrate the Ducati Scrambler’s iconic trellis frame, hidden on the production model. A new UMC custom petrol tank echoes the line and angle of the frame creating an overall slim body where the seat, tank and headlight are all part of a single tapered form.

UMC-038 consists of three core elements: engine, frame, and body: The engine and other mechanical parts are stripped to bare metal and vapour blasted to emphasise their raw mechanical nature. The frame is painted in ‘Rosso Corsa’, a neon orange colour from Ducati’s MotoGP race bikes. The bodywork has been painted in a solid grey, matching the slim grip vinyl seat, with nickel-plated side panels.

All extraneous components, including numerous plastic panels, have been stripping removed, resulting in a bike that, at 325lbs, is 85lbs lighter than the original.

We’ve created an 800cc motorcycle that weighs less than a Vespa scooter.

Although this particular bike is road legal, we are evolving the design and developing the next generation road-going versions.

TECH SPECS

Donor Bike
2015 Ducati Scrambler 803cc air-cooled L-twin.

Frame, Suspension, Wheels

• Original frame, de-tabbed, original shock mount removed.
• Ducati Monster S2R swingarm, Ohlins monoshock.
• Custom UMC rear subframe with welded-in LED channels.

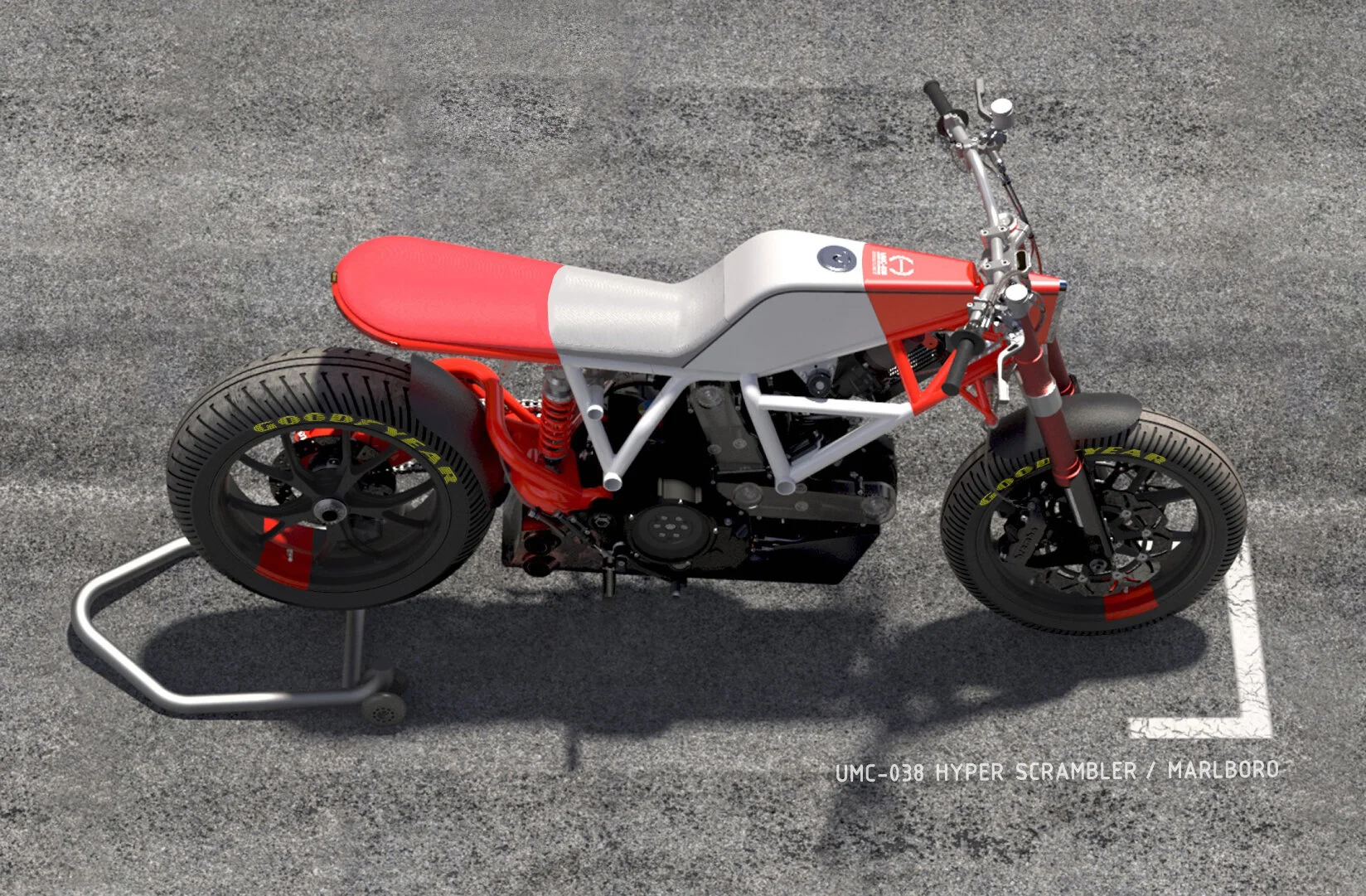

• Ducati ‘Rosso Corsa’ neon orange race paint (other colours available on request).
• Original 18″ front wheel replaced with Ducati Monster M796 17″ front wheel.
• Original 17″ rear wheel replaced with Ducati Monster 1100 17″ rear wheel.
• Continental RaceAttack Rain tyres (120/70-17 front, 180/55-17 rear).
• EBC wave brake discs, customised by UMC.
• Showa big piston forks, stripped and custom-anodised to match the frame.
• OEM foot pegs and levers, customised by UMC.
• Custom fork guards, designed and fabricated in-house by UMC.

Electrics, Lighting

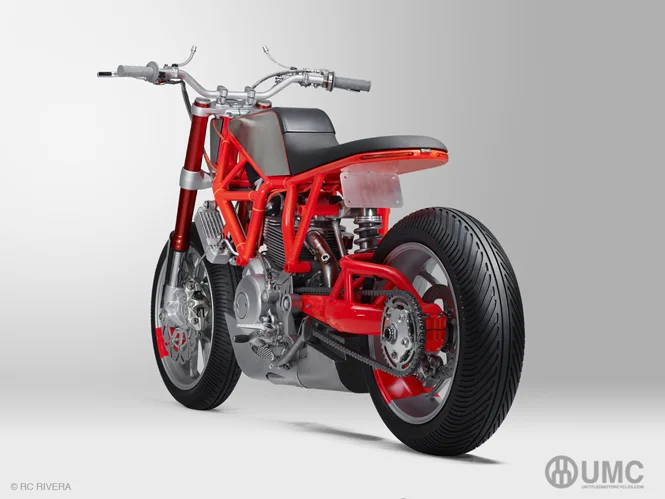

• Rear LED strips, integrated into the rear hoop, act as both brake lights and turn signals.
• Simplified wiring loom with Motogadget M-Unit control module.
• LED headlight, modified and machined in-house, mounted to a custom bracket welded to the headstock.
• Antigravity XPS SC-1 lithium battery installed under UMC custom seat.
• Original ignition retained and relocated to right hand side of frame, under UMC custom petrol tank.

Controls

• Motogadget motoscope mini speedometer and instrument lights, integrated into modified top fork bracket.
• Brembo brake master cylinder with 2-into-2 braided stainless steel lines.
• Brembo clutch master cylinder with braided stainless steel line.
• Custom throttle with braided stainless steel cable.

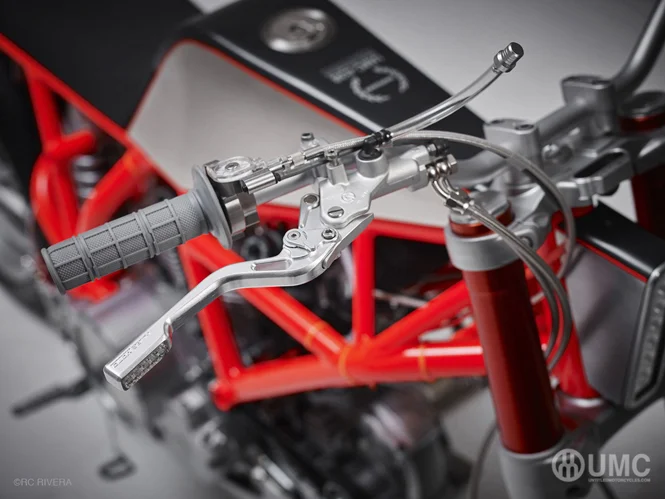

• Custom levers, with integrated LED turn signals.
• Renthal lo-rise handlebar with custom switchgear.

Engine and Exhaust

• Reflashed and programmed ECU.
• Bing single throttle body with integrated air temperature sensor and Uni snowmobile air filter.
• Clear high-pressure braided fuel line.
• Billet oil filler cap and custom front sprocket cover.
• Hydraulic clutch conversion, Ducati clutch slave with braided stainless steel line.

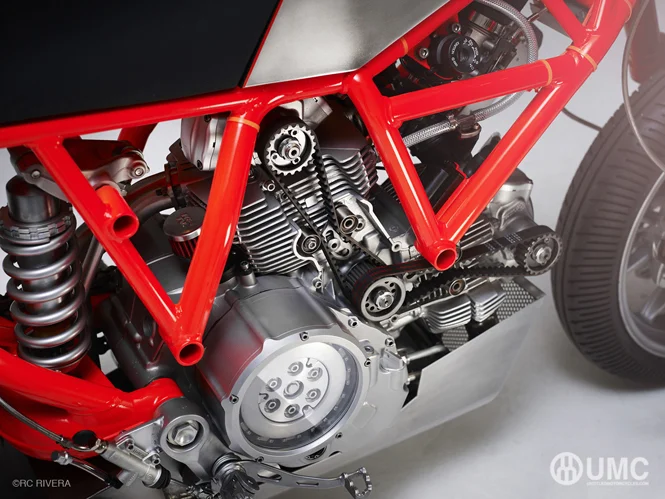

• Clutch case with polycarbonate observation window, UMC-customised clutch plates.
• Rear sprocket changed to 41-tooth to manage acceleration and improve top speed.
• QD Ex-Box exhaust and headers, modified by UMC.

Bodywork

• Custom-fabricated 2.6 gallon / 10 litre steel petrol tank with integrated OEM fuel pump (approximate range 95 miles, 115 miles on reserve*).
• Custom aluminium headlight housing, brushed and polished in-house, 1300 lumen LED headlight.
• Custom aluminum belly pan with mesh front panel and exhaust header cutout.
• Custom seat upholstered in motocross grip vinyl.
* if ridden responsibly, hahaha
