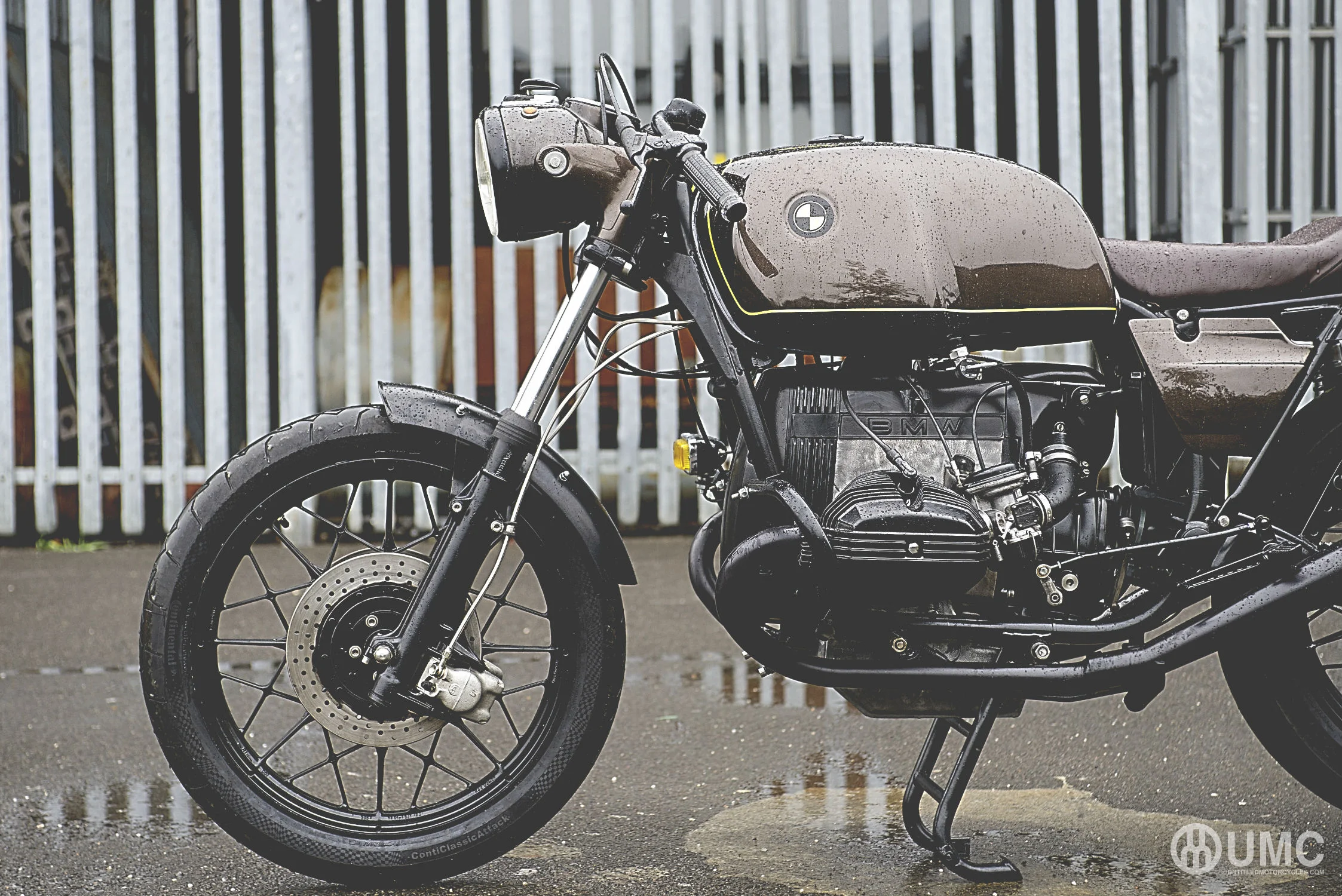

UMC-027 NOIR
Donor Bike
BMW R80/7
SPECIFICATIONS
Length: 1465 mm
Width: 746 mm
Height: 1080 mm
Seat: 810 mm
Weight: 215 Kg
Fuel: 24 litres
Frame, Suspension, Wheels.
• Original frame de-tabbed and powder coated satin black
• Subframe shortened and rear hoop angled up. Powder coated satin black
• Original snow flake wheels powder coated satin black.
• Tyres - conti classic attack
• New rear Hagon shocks customised
Electrics, Lighting.
• New UMC wiring loom
• BMW front headlight modified by UMC
• Original BMW speedo sunk into modified UMC headlight
• Rear light mounted on UMC fabricated bracket
• Odyssey battery mounted in house fabricated box.
• Motogadget m-unit - blaze indicators
• Fog light
Controls.
• Classic British scrambler handle bars powder coated black and placed upside down
• Motogadget handle bar controls with wiring through bars and top yoke into headlight shell.
• Domino brake and clutch levers and mounts.
• Original master cylinder and reservoir replaced by BMW under tank master cylinder.
• Cable operated brake lever
• Goodrich brake hose
• Metal motogadget grips
• Throttle
Engine, Exhaust.
• Engine overhauled and painted black
• New big end shells
• New timing chains and tensioners
• New piston rings
• New valve get guides
• New valves
• Stainless pushrods tubes
• New clutch friction plates
• All new gaskets and
• Gearbox overhauled
• Carbs overhauled
• Header pipe balance pipe removed. Pipes ceramic coated black
• Classic British silencers fitted. Ceramic coated black
Bodywork.
• Original tank painted Porsche brown with black wide stripe with gold pinstriping
• New leather seat with slight hump
• Crash bars powder coated satin black
• Alloy front guard powder coated satin black
• Splash plate between subframe down tubes
• Aftermarket rear sets
